Mounting Pins & Rings for Phenolic Counterplates


A variety of items for use with phenolic counterplates:
  • Mounting / locator pins are used to mount phenolic counterplates to the cutting die. Available in aluminum or nylon.

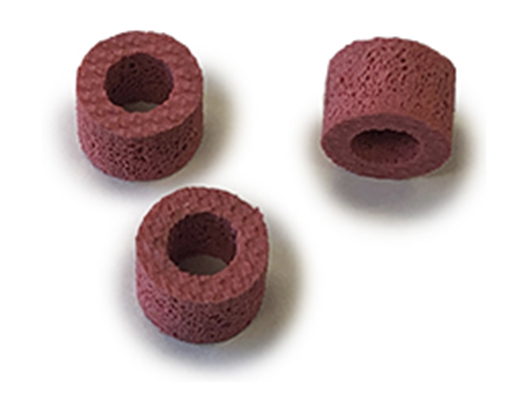

  • Diansuply F-70 ejection rubber rings are to be used in conjunction with mounting pins to mount the counterplate to the cutting die.
  • Blue counterplate pin washers better align and more easily apply the counterplate on press. The washer aids in the release of the counterplate off of the pin.
  • Nylon square bushings ensure perfect setting of the counterplate. Bushings also help with repeated inserting and pulling of pins. Without bushings, the dieboard can wear and create play or misalignment.
  • Pin pullers are a handy tool to save fingers and extract the pins easily without damaging the dieboard or the pins.



SKU Description   UM Thickness Width Length Height Board ft. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Qty
55141000 F-70 Open Cell Rings EA 5/16" 5/8" 3/8" 1
55141040 F-70 Open Cell Rings EA 5/16" 13/16" 3/8" 1
59951300 Pins - Counterplate, Aluminum (Machined) EA
59951600 Pins - Counterplate, White (Machined) EA
59951400 Pins - Counterplate, Black (Molded) EA
59951500 Pins - Counterplate, Red (Molded) EA
59951700 Pins - Counterplate, White (Molded) EA
59950500 Washer - Counterplate, Blue EA
59951800 Bushing - Counterplate, Square, White Nylon EA
59938400 Counter Plate Pin Puller EA
