Helmold Creasing Rule

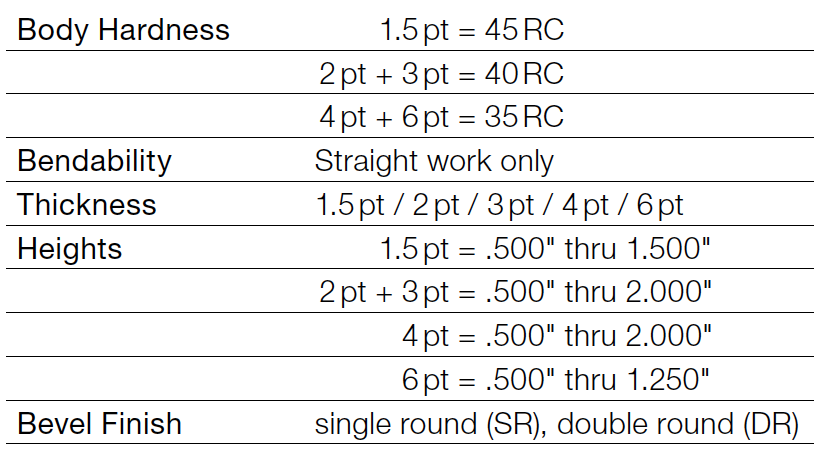

Helmold® flat crease rule comes in the traditional profile with a radiused top and flat bottom, as well as a dual radiused profile. This shape allows either edge to be used for scoring, will not splitter wood, and produces well defined scores while inhibiting board cracking. This creasing rule is designed for all applications in the packaging and folding carton industries. Its smooth face and quality tolerance makes this rule great for all applications.

Steel rule is sold in coils for auto-benders, (wound clockwise CW or anticlockwise ACW). Also available in dispenser coils and boxed strips.



SKU Description   UM Thick Width Length Height Board ft. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Qty
57135385 Helmold Flat Creasing Rule - 3PT, 0.850" FT 165
57148610 Helmold Flat Creasing Rule - 3PT, 0.929" FT 165
57152580 Helmold Flat Creasing Rule - 3PT, 1.225", Single Round, EZ-Coil Clockwise FT 200
57102790 Helmold Flat Creasing Rule - 1 on 2PT, 0.895" FT 30" 250
57102950 Helmold Flat Creasing Rule - 1 on 2PT, 0.900" FT 30" 250
57103430 Helmold Flat Creasing Rule - 1 on 2PT, 0.912" FT 30" 250
57103750 Helmold Flat Creasing Rule - 1 on 2PT, 0.918" FT 30" 250
57104070 Helmold Flat Creasing Rule - 1 on 2PT, 0.921" FT 30" 250
57104230 Helmold Flat Creasing Rule - 1 on 2PT, 0.923" FT 30" 250
57104390 Helmold Flat Creasing Rule - 1 on 2PT, 0.925" FT 30" 250
57104550 Helmold Flat Creasing Rule - 1 on 2PT, 0.927" FT 30" 250
57104560 Helmold Flat Creasing Rule - 1 on 2PT, 0.927" FT 300
57104620 Helmold Flat Creasing Rule - 1 on 2PT, 0.928" FT 30" 250
57104710 Helmold Flat Creasing Rule - 1 on 2PT, 0.930" SO FT 30"
57104950 Helmold Flat Creasing Rule - 1 on 2PT, 0.933" FT 30" 250
57101190 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.918", EZ-Coil ACW FT 100
57101345 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.921", EZ-Coil ACW FT 328
57101510 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.923" FT 30" 250
57101670 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.925" FT 30" 250
57101830 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.927" FT 30" 250
57101990 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.929" FT 30" 250
57102150 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.930" CO FT 30" 250
57102470 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.937" FT 30" 250
57102635 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.940", EZ-Coil ACW FT 300
57102634 Helmold Flat Creasing Rule - 1.5 on 2PT, 0.940", 30" FT 250
57105830 Helmold Crease - 2PT, 0.875" FT 30" 250
57105700 Helmold Flat Creasing Rule - 2PT, 0.472" FT 30" 250
57109030 Helmold Flat Creasing Rule - 2PT, 0.903", EZ-Coil ACW FT 300
57110795 Helmold Flat Creasing Rule - 2PT, 0.907", EZ-Coil ACW FT 328FT
57111110 Helmold Flat Creasing Rule - 2PT, 0.908", EZ-Coil ACW FT 300
57111910 Helmold Flat Creasing Rule - 2PT, 0.910" FT 30" 250
57114150 Helmold Flat Creasing Rule - 2PT, 0.913", EZ-Coil ACW FT 300
57114950 Helmold Flat Creasing Rule - 2PT, 0.914", EZ-Coil Clockwise FT 328
57115910 Helmold Flat Creasing Rule - 2PT, 0.915", EZ-Coil Clockwise FT 328
57118320 Helmold Flat Creasing Rule - 2PT, 0.919", EZ-Coil ACW FT
57120070 Helmold Crease - 2PT, 0.922", EZ-Coil ACW FT
57122150 Helmold Flat Creasing Rule - 2PT, 0.926" FT 30" 250
57122950 Helmold Flat Creasing Rule - 2PT, 0.927", EZ-Coil Clockwise FT 328
57123270 Helmold Flat Creasing Rule - 2PT, 0.928", EZ-Coil ACW FT 300
57123590 Helmold Flat Creasing Rule - 2PT, 0.929" FT 30" 250
57124870 Helmold Flat Creasing Rule - 2PT, 0.930", EZ-Coil ACW FT 300
57124710 Helmold Flat Creasing Rule - 2PT, 0.930" SO FT 30" 250
57125510 Helmold Flat Creasing Rule - 2PT, 0.932", EZ-Coil ACW FT 300
57125350 Helmold Flat Creasing Rule - 2PT, 0.932" CO FT 30" 250
57126310 Helmold Flat Creasing Rule - 2PT, 0.934", EZ-Coil ACW FT 300
57126790 Helmold Flat Creasing Rule - 2PT, 0.935", Clockwise FT 300
57126630 Helmold Flat Creasing Rule - 2PT, 0.935", EZ-Coil ACW FT 300
57126470 Helmold Flat Creasing Rule - 2PT, 0.935" FT 30" 250
57128390 Helmold Flat Creasing Rule - 2PT, 0.939", EZ-Coil ACW FT 300
57128230 Helmold Flat Creasing Rule - 2PT, 0.939" FT 30" 250
57129030 Helmold Flat Creasing Rule - 2PT, 0.940", EZ-Coil Clockwise FT 300
57129190 Helmold Flat Creasing Rule - 2PT, 0.940", EZ-Coil ACW FT 300
57128710 Helmold Flat Creasing Rule - 2PT, 0.940" FT 30" 250
57128870 Helmold Flat Creasing Rule - 2PT, 0.940" (Bohler) FT 30" 250
57129600 Helmold Flat Creasing Rule - 2PT, 0.942", EZ-Coil ACW FT 300
57129550 Helmold Flat Creasing Rule - 2PT, 0.942" FT 30" 250
57129685 Helmold Flat Creasing Rule - 2PT, 0.944", EZ-Coil ACW FT 300
57129830 Helmold Flat Creasing Rule - 2PT, 0.945", EZ-Coil ACW FT 300
57130970 Helmold Flat Creasing Rule - 2PT, 1.250" FT 30" 165
57131110 Helmold Flat Creasing Rule - 2PT, 1.5" FT 30" 150
57131110 Helmold Flat Creasing Rule - 2PT, 1.5" FT 30" 150
57131270 Helmold Flat Creasing Rule - 2PT, 2" FT 30" 75
57135380 Helmold Flat Creasing Rule - 3PT, 0.805", EZ-Coil ACW FT 200
57135395 Helmold Flat Creasing Rule - 3PT, 0.860", Straight No Notch, EZ-Coil ACW FT 200
57135590 Helmold Flat Creasing Rule - 3PT, 0.870", EZ-Coil ACW FT 200
57135430 Helmold Flat Creasing Rule - 3PT, 0.870" FT 30" 165
57136250 Helmold Flat Creasing Rule - 3PT, 0.875", EZ-Coil ACW FT 200
57135910 Helmold Flat Creasing Rule - 3PT, 0.875" FT 30" 165
57136550 Helmold Flat Creasing Rule - 3PT, 0.880", EZ-Coil ACW FT 200
57136870 Helmold Flat Creasing Rule - 3PT, 0.885", EZ-Coil ACW FT 200
57138150 Helmold Flat Creasing Rule - 3PT, 0.898" FT 30" 165
57138950 Helmold Flat Creasing Rule - 3PT, 0.900", EZ-Coil ACW FT 200
57146630 Helmold Crease - 3PT, 0.918" EZ-Coil ACW CO FT 197FT 197
57138470 Helmold Flat Creasing Rule - 3PT, 0.900", SNN, 45RC FT 48" 240
57146790 Helmold Crease - 3PT, 0.918", EZ-Coil ACW FT 200
57140070 Helmold Flat Creasing Rule - 3PT, 0.903" FT 30" 165
57139950 Helmold Crease - 3PT, 0.903", EZ-Coil ACW NEW FT 200
57140550 Helmold Flat Creasing Rule - 3PT, 0.904", EZ-Coil ACW FT 200
57140390 Helmold Flat Creasing Rule - 3PT, 0.904" CO FT 30" 165
57141350 Helmold Flat Creasing Rule - 3PT, 0.905", EZ-Coil ACW SO FT 200
57141030 Helmold Flat Creasing Rule - 3PT, 0.905", Flat One Side FT 30" 165
57142155 Helmold Flat Creasing Rule - 3PT, 0.906", EZ-Coil Clockwise FT
57142470 Helmold Flat Creasing Rule - 3PT, 0.907" FT 30" 165
57143270 Helmold Flat Creasing Rule - 3PT, 0.908", EZ-Coil ACW FT 200
57143590 Helmold Flat Creasing Rule - 3PT, 0.909", EZ-Coil ACW FT 200
57143750 Helmold Flat Creasing Rule - 3PT, 0.910", Flat One Side SO FT 30"
57145510 Helmold Flat Creasing Rule - 3PT, 0.912", EZ-Coil ACW FT 200
57147250 Helmold Flat Creasing Rule - 3PT, 0.920" FT 30" 165
57147270 Helmold Flat Creasing Rule - 3PT, 0.920", EZ-Coil ACW FT 197
57147590 Helmold Flat Creasing Rule - 3PT, 0.923", EZ-Coil ACW FT 200
57147650 Helmold Flat Creasing Rule - 3PT, 0.923" FT 30" 165
57147750 Helmold Flat Creasing Rule - 3PT, 0.925", EZ-Coil ACW FT 197
57147800 Helmold Flat Creasing Rule - 3PT, 0.925" FT 30" 165
57148230 Helmold Flat Creasing Rule - 3PT, 0.927" FT 30" 165
57148238 Helmold Crease - 3PT, 0.927", EZ-Coil ACW NEW FT 200
57148390 Helmold Flat Creasing Rule - 3PT, 0.928" FT 30" 165
57148600 Helmold Flat Creasing Rule - 3PT, 0.929", EZ-Coil ACW FT 200
57148655 Helmold Flat Creasing Rule - 3PT, 0.930", EZ-Coil ACW FT 200
57148650 Helmold Flat Creasing Rule - 3PT, 0.930" FT 30" 165
57148870 Helmold Flat Creasing Rule - 3PT, 0.932" FT 30" 165
57149510 Helmold Flat Creasing Rule - 3PT, 0.937", EZ-Coil ACW FT 200
57150310 Helmold Flat Creasing Rule - 3PT, 0.940", EZ-Coil ACW FT 200
57150150 Helmold Flat Creasing Rule - 3PT, 0.940", Flat One Side CO FT 30" 165
57149990 Helmold Flat Creasing Rule - 3PT, 0.940" FT 30" 165
57150620 Helmold Flat Creasing Rule - 3 PT, 0.942", EZ-Coil ACW FT 200
57150630 Helmold Flat Creasing Rule - 3PT, 0.942", SNN FT 30" 165
57150680 Helmold Flat Creasing Rule - 3PT, 0.944", EZ-Coil ACW CO FT 200
57151590 Helmold Flat Creasing Rule - 3PT, 0.960", EZ-Coil ACW SO FT 200
57151750 Helmold Flat Creasing Rule - 3PT, 0.970" FT 30" 165
57152390 Helmold Crease - 3PT, 1.083" FT 30" 125
57152710 Helmold Flat Creasing Rule - 3PT, 1.25" FT 30" 100
57153050 Helmold Flat Creasing Rule - 3PT, 1.875" FT 30" 50
57153510 Helmold Flat Creasing Rule - 3PT, 2", Clockwise FT 200
57153360 Helmold Flat Creasing Rule - 3PT, 2", EZ-Coil ACW FT
57153355 Helmold Flat Creasing Rule - 3PT, 2", Flat One Side FT 30" 50
57153350 Helmold Flat Creasing Rule - 3PT, 2" SO FT 30" 50
57157830 Helmold Flat Creasing Rule - 4PT, 0.5", EZ-Coil ACW FT 150
57160070 Helmold Flat Creasing Rule - 4PT, 0.895", EZ-Coil ACW FT
57161670 Helmold Flat Creasing Rule - 4PT, 0.907" FT 30" 125
57163110 Helmold Flat Creasing Rule - 4PT, 0.918", EZ-Coil ACW FT 150
57163430 Helmold Flat Creasing Rule - 4PT, 0.920", Straight No Notch FT 48" 200
57164070 Helmold Flat Creasing Rule - 4PT, 0.923", Dispenser Coil FT 150
57164230 Helmold Flat Creasing Rule - 4PT, 0.925" FT 36" 150
57164550 Helmold Flat Creasing Rule - 4PT, 0.930" FT 30" 125
57165030 Helmold Flat Creasing Rule - 4PT, 0.937", EZ-Coil ACW FT 150
57165190 Helmold Flat Creasing Rule - 4PT, 0.940" FT 30" 125
57165350 Helmold Flat Creasing Rule - 4PT, 0.942" FT 30" 125
57166310 Helmold Flat Creasing Rule - 4PT, 1.050" FT 30" 100
57166630 Helmold Flat Creasing Rule - 4PT, 1.062" FT 30" 100
57167270 Helmold Flat Creasing Rule - 4PT, 1.088", EZ-Coil ACW FT 150
57167110 Helmold Flat Creasing Rule - 4PT, 1.088" FT 30" 100
57168075 Helmold Crease - 4PT, 1.150", EZ-Coil ACW NEW FT 150
57168230 Helmold Flat Creasing Rule - 4PT, 1.5" FT 30" 75
57166220 Helmold Flat Creasing Rule - 4PT, 1" FT 30" 125
57168870 Helmold Flat Creasing Rule - 4PT, 2" FT 30" 40
57172550 Helmold Flat Creasing Rule - 6PT, 0.900", Flat One Side FT 30" 85
57184710 Helmold Flat Creasing Rule - 4PT, 0.905", Straight No Notch, EZ-Coil ACW FT 150
57185990 Helmold Flat Creasing Rule - 4PT, 0.918", Straight No Notch, Dispenser Coil FT 150
57173800 Helmold Flat Creasing Rule - 6PT, 0.918", Flat One Side CO FT 30" 85
57186790 Helmold Flat Creasing Rule - 6PT, 1.25", EZ-Coil ACW FT 150
57149670 Helmold Flat Creasing Rule UltraFlex - 3PT, 0.937", EZ-Coil ACW FT 200
57158150 Helmold Flat Creasing Rule UltraFlex - 4PT, 0.800" CO FT 30" 125
57127750 Helmold-70 Flat Creasing Rule - 2PT, 0.937", EZ-Coil ACW FT 300
57128550 Helmold-70 Flat Creasing Rule - 2PT, 0.939", EZ-Coil ACW FT 300
57129350 Helmold-70 Flat Creasing Rule - 2PT, 0.940", EZ-Coil ACW FT 300
57149830 Helmold-70 Flat Creasing Rule - 3PT, 0.937", EZ-Coil ACW FT 200
57150470 Helmold-70 Flat Creasing Rule - 3PT, 0.940", EZ-Coil ACW FT 200
57411405 Helmold Flat Perf Rule - 2PT, 1/16" Cut, 1/16" Space, 0.937" FT 16"
57422300 Helmold Flat Perf Rule - 2PT, 4 Cut, 0.020" Space, 0.937" FT 30"
