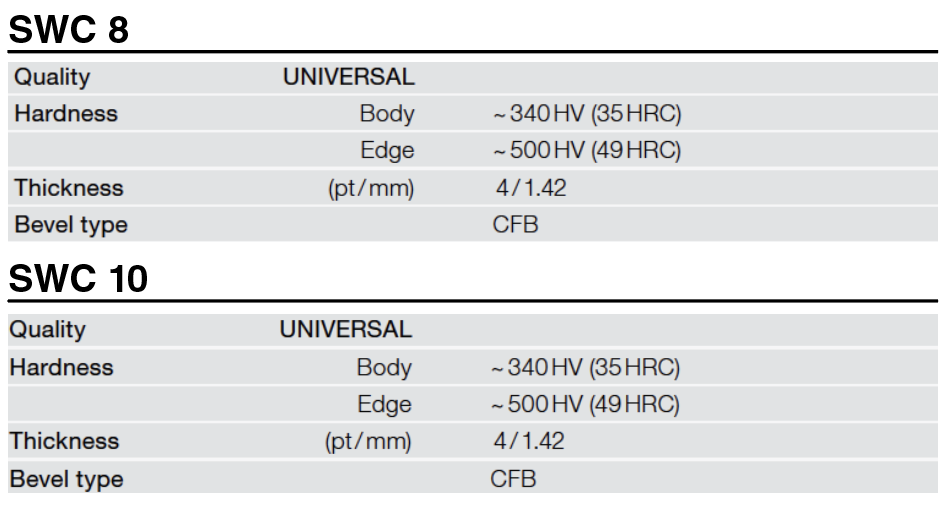

Bohler SWC 8/10


Bohler® SWC 8 is engineered to cut heavy-weight double and triple wall corrugated board with minimal pressure. As with all the SWC rules, this material is also recommended for lead and trail edges to reduce the cutting pressure.

Bohlerstrip SWC 10 performs superbly, in both directions, on 32ECT and above singlewall corrugated board. SWC 10 can also be used on longer lead and trail edges to reduce cutting pressure and deflection. To see the benefit of the reduced gullet and anvil wear it is recommended to increase the creasing rule height.

Steel rule is sold in coils for auto-benders, (wound clockwise CW or anticlockwise ACW). Also available in dispenser coils and boxed strips.



Catalog Number Description   Qty
56209130 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.900", Clockwise
56267320 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 86"x90°, Clockwise
56271525 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T-36, 1.125", 86"x90°, Clockwise
56266930 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 0.990", 50"x90°, Clockwise CO
56270920 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.030", 50"x90°, Clockwise CO
56271300 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.030", 66"x90°, Clockwise CO
56271505 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.040", Straight No Notch, EZ-Coil ACW
56213730 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.990", 50"x90°, Clockwise CO
56213920 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.990", 66"x90°, Clockwise
56209110 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.890", 66"x90°
56210500 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.970", 66"x90°, Clockwise CO
56211070 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.970", Straight No Notch, 48" CO
56210690 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.970", Straight No Notch, EZ-Coil ACW CO
56210120 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.970", 37.5"x90°
56210310 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.970", 66"x90° CO
56215630 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.990", Straight No Notch, D/T, Clockwise
56215250 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.990", Straight Notched, EZ-Coil Clockwise CO
56215440 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 0.990", Straight No Notch, EZ-Coil ACW
56215820 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 1", 37.5"x90° CO
56217720 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 1.030", 17-1/2" ID, Straight No Notch, Clockwise CO
56217530 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, T36, 1.030", Straight No Notch, EZ-Coil ACW CO
56209150 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.937", Straight No Notch, Clockwise
56212210 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", Straight No Notch, EZ-Coil Clockwise
56211640 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", Curved Not Notched, 66"x90° CO
56211830 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", Straight No Notch, Dispenser Coil CO
56212020 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", Straight No Notch, EZ-Coil ACW CO
56211260 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", 66"x45° CO
56211450 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.970", 66"x90° CO
56212400 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.990", Teflon Coated, Straight No Notch, 48"
56214490 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.990", Teflon Coated, 50"x90°
56214680 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, 0.990", 37.5"x90° CO
56214870 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.990", Curved Not Notched, 66"x90°
56214300 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 0.990", 66"x90° CO
56216770 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1", Straight No Notch, EZ-Coil ACW
56216010 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1", 66"x45°
56216200 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1", 66"x90°
56217340 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.023", Straight No Notch, EZ-Coil ACW
56217150 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.023", 50"x90° CO
56216960 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.023", 66"x90°
56217910 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.030", 66"x90° CO
56218000 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.125", Straight No Notch, EZ-Coil ACW
56218100 Bohler SWC 8/10 - 4PT, 10T, CF/SWC, Universal, 1.125", 66"x90° CO
56271530 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T-36, 1.125", Straight No Notch, EZ-Coil Clockwise
56271560 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.155", 86"x90°, Clockwise
56264840 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.970", Curved Not Notched, 66"x90° CO
56264270 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.970", 50"x90° CO
56264460 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.970", 66"x45° CO
56264650 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.970", 66"x90°
56266360 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", 11-11/16" ID, 42"x90° SO
56266170 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", Curved Not Notched, 66"x90°
56266800 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", Straight No Notch, 48" CO
56266550 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", Straight No Notch, Dispenser Coil
56266740 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", Straight No Notch, EZ-Coil ACW
56265790 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", 50"x90°
56265980 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 0.990", 66"x90°
56269020 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.023", Curved Not Notched, 66"x90°
56269210 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.023", Straight No Notch, Dispenser Coil CO
56269400 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.023", Straight No Notch, EZ-Coil ACW
56268640 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.023", 50"x90°
56268830 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.023", 66"x90° CO
56270540 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.030", Straight No Notch, 48"
56270350 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1.030", Straight No Notch, EZ-Coil ACW
56267120 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 10-1/8" ID, Curved, 37.5"x90° CO
56267500 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 21-9/16" ID, Curved, 75"x90°
56267690 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", Straight No Notch, EZ-Coil ACW
56267300 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 37"x90°
56267305 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 50"x90°
56267310 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 66"x90°
56267315 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, T36, 1", 66"x90°, Clockwise
56265220 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 0.970", Curved Not Notched, 66"x90° CO
56265410 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 0.970", Straight No Notch, Dispenser Coil CO
56265600 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 0.970", Straight No Notch, EZ-Coil ACW CO
56265030 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 0.970", 66"x90°
56268260 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1", Curved Not Notched, 66"x90°
56268450 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1", Straight No Notch, EZ-Coil ACW
56267880 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1", 66"x45°
56268070 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1", 66"x90°
56269970 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.023", Curved Not Notched, 66"x90°
56269590 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.023", Straight No Notch, 48" CO
56270160 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.023", Straight No Notch, EZ-Coil ACW
56269780 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.023", 66"x90°
56271490 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.030", Straight No Notch, EZ-Coil ACW
56270730 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.030", 50"x90° CO
56271110 Bohler SWC 8/10 - 4PT, 8T, CF/SWC, Universal, 1.030", 66"x90°
56289600 Bohler SWC 8/10 - 4PT, 8T, CF/TOC, T36, 0.990", Tough Cut Scalloped, Straight No Notch, EZ-Coil ACW
56289700 Bohler SWC 8/10 - 4PT, 8T, CF/TOC, T36, 1.5", Tough Cut Scalloped, Straight No Notch, EZ-Coil ACW
56290680 Bohler SWC 8/10 - 6PT, 8T, CF/SWC, 0.990", Straight No Notch, 48" CO
