Freeman XP Rotary Dieboard


View Larger Image

View Larger Image

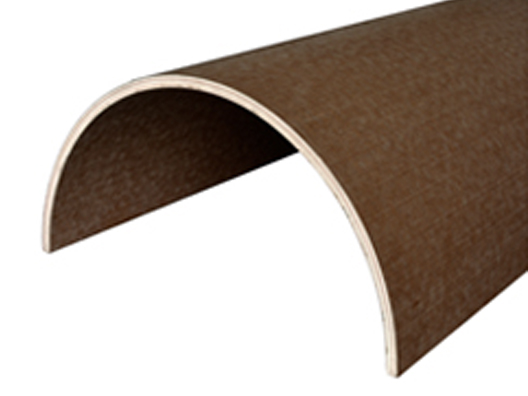

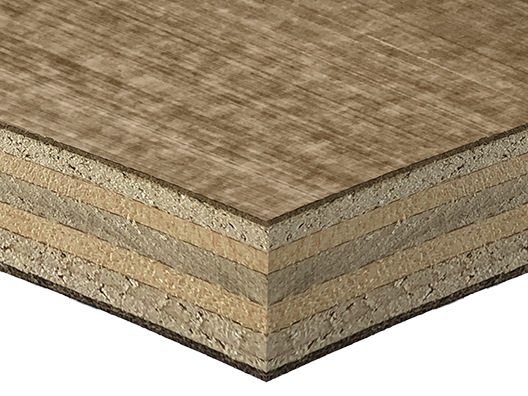

Freeman XP™ Rotary Dieboard is constructed utilizing a high density overlay face and back. The HDO faces provide a surface layer that improves dimensional stability and is 35-50% more dense than hardwood veneer. Constructed with maple and other hardwood inner plies for strength. Priced similar to wood veneer rotary dieboards for better performance at a great value. The smooth surfaces on the XP board have also proven very helpful for press operators when adjusting a die on the Serrapid quick die-change cylinders.

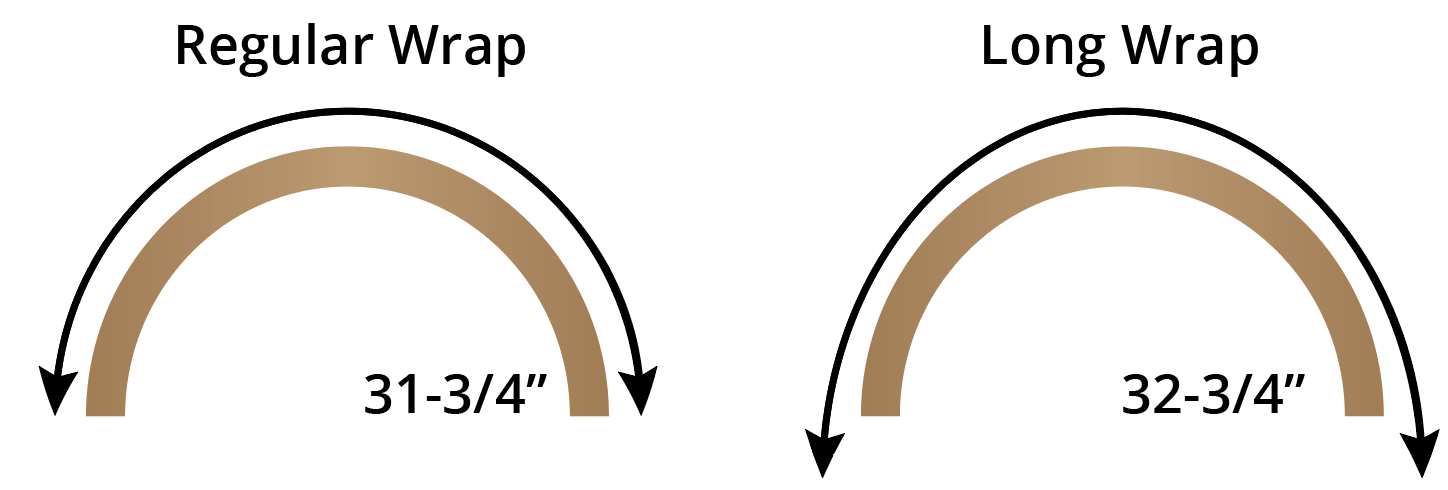

Please note that Long Wrap boards have an extra 1/2" of circumference on each side of the board.

Technical Resources
Our Customers Also Buy...


SKU Description   UM Thick Width Length Height Board ft. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Qty
079723 XP Rotary Dieboard 19/3/16" EA 1/2" 41" 19-3/16" 8
079723LW XP Rotary Dieboard 19-3/16" Long Wrap EA 1/2" 41" 19-3/16" 8
079720 XP Rotary Dieboard 14-1/2" EA 1/2" 82" 14-1/2" 8
079725 XP Rotary Dieboard 19-3/16" EA 1/2" 51" 19-3/16" 8
079725LW XP Rotary Dieboard 19-3/16" Long Wrap EA 1/2" 51" 19-3/16" 8
079730LW XP Rotary Dieboard 19-3/16" Long Wrap CO EA 1/2" 60" 19-3/16" 8
079732 XP Rotary Dieboard 19-3/16" EA 1/2" 72" 19-3/16" 8
079732LW XP Rotary Dieboard 19-3/16" Long Wrap CO EA 1/2" 72" 19-3/16" 8
079734 XP Rotary Dieboard 19-3/16" EA 1/2" 82" 19-3/16" 8
079734LW XP Rotary Dieboard 19-3/16" Long Wrap CO EA 1/2" 82" 19-3/16" 8
079738 XP Rotary Dieboard 19-3/16" EA 1/2" 102" 19-3/16" 5
079738LW XP Rotary Dieboard 19-3/16" Long Wrap CO EA 1/2" 102" 19-3/16" 5
079739 XP Rotary Dieboard 19-3/16" EA 1/2" 104" 19-3/16" 5
079739LW XP Rotary Dieboard 19-3/16" Long Wrap EA 1/2" 104" 19-3/16" 5
079740 XP Rotary Dieboard 19-3/16" EA 1/2" 118" 19-3/16" 5
079740LW XP Rotary Dieboard 19-3/16" Long Wrap CO EA 1/2" 118" 19-3/16" 5
079742 XP Rotary Dieboard 19-3/16" EA 1/2" 120" 19-3/16" 5
079742LW XP Rotary Dieboard 19-3/16" Long Wrap EA 1/2" 120" 19-3/16" 5
079707 XP Rotary Dieboard 7" EA 1/2" 75" 7" 8
079709 XP Rotary Dieboard 10-1/8" EA 1/2" 72" 10-1/8" 8
079708 XP Rotary Dieboard 10-5/8" EA 1/2" 72" 10-5/8" 8
079711 XP Rotary Dieboard 14-1/8" EA 1/2" 82" 14-1/8" 8
079713 XP Rotary Dieboard 14-3/16" EA 1/2" 82" 14-3/16" 8
079716 XP Rotary Dieboard 14.4" EA 1/2" 82" 14.4" 8
079750 XP Rotary Dieboard 26-1/2" SO EA 5/8" 72" 26-1/2" 5
